Hitachi LCD Module Catalogue - February 2011
-- 2/19/2011
Through the use of original cutting-edge technology, Hitachi offers Liquid Crystal Displays (LCD) Modules such as Super Thin-Film Transistors (S-TFT) and Super Twisted Nematics (STN).
Another area of innovation that Hitachi has been recognised for is the evolution of In-Plane-Switching (IPS) technology.
DISPLAY EXCELLENCE
|
Through the use of original cutting-edge technology, Hitachi offers Liquid Crystal Displays (LCD) Modules such as Super Thin-Film Transistors (S-TFT) and Super Twisted Nematics (STN).
Another area of innovation that Hitachi has been recognised for is the evolution of In-Plane-Switching (IPS) technology.
Developed and released by Hitachi Displays, Ltd. in 1996, IPS technology was the first LCD technology to provide outstanding picture quality particularly when viewed at any viewing angle.
|
|
|
Main benefits of IPS technology:
Ø 176°Wide Vertical & Horizontal Viewing Angle
Ø Deeper Black Level
Ø Higher Brightness
Ø Excellent Contrast
Ø Exceptional Colour Saturation
Ø Colour Stability
|
|
IPS has since evolved into Super-IPS, Advance-Super IPS and more recently IPS-Provectus.
Hitachi’s continuous improvement of IPS LCD technology now provides the best LCD solution on the market for the requirements of professional, high end and multi-user imaging.

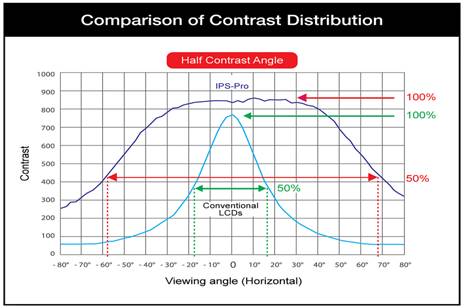

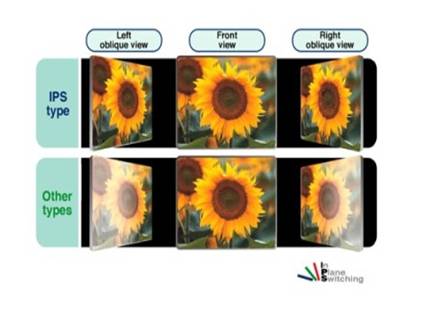

The diagram below illustrates the improved viewing angles of IPS Pro compared to alternative wide viewing angle technologies.
In particular it is important to note the viewing angles achievable at 50% contrast level. This is known as the Half Contrast Angle (HCA) which is a more realistic measurement of wide angle performance. The maximum contrast ratio
is experienced when looking perpendicular to the screen.
|
|
“IPS-Pro has a much higher and more stable image performance over viewing angle than any other
TFT technology.”
|
.jpg)
|
| |
|
|
NEW PRODUCTS
5.8” WQVGA IPS
Key Features:
Ø IPS-Pro Technology with Super Wide Viewing Angle of 176ºC
Ø Brightness of 450 cd/m2
Ø 800:1 Contrast Ratio
Ø Long LED Backlight Lifetime of 70K hrs
Ø Mass Production scheduled to start from Q2 /2011
12.1” SVGA IPS
Key Features:
Ø IPS-Pro Technology with Super Wide Viewing Angle of 176ºC
Ø LVDS Interface
Ø Brightness of 450 cd/m2
Ø 1000:1 Contrast Ratio
Ø Long LED Backlight Lifetime of 70K hrs
Ø Mass Production scheduled to start from Q3 /2011
LATEST INNOVATIONS AND DEVELOPMENTS
Contact us for these up & coming products.
Ø 5.7” VGA IPS : 70K hrs LED Backlight
Ø 10.4” VGA : 70K hrs LED Backlight, 1000 cd/m2 Brightness
Ø 6.5” VGA : 70K hrs LED Backlight, 1000 cd/m2 Brightness
|
Size
|
Resolution
|
Part Number
|
Technology
|
Mode
|
Dimensions
|
Backlight
|
Features
|
|
2.2"
|
240 x 320
|
TX06D57VM0AAA
|
IPS TFT
|
Transmissive
|
39.8 x 56.1 x 2.7
|
White LED
|
IPS (170 degree view angle)
|
|
2.4"
|
240 x 320
|
TX06D126VM0AAA
|
IPS TFT
|
Transmissive
|
41.92 x 61.45 x 2.55
|
LED
|
IPS-Pro, 18 bit CPU I/F
|
|
2.7"
|
240 x 320
|
TX07D09VM1CAB
|
TFT
|
Transmissive
|
50.5 x 68.6 x 2.6
|
White LED
|
High brightness, built in timing controller, Touchscreen
|
|
2.7"
|
240 x 320
|
TX07D09VM1CBB
|
TFT
|
Transmissive
|
50.5 x 68.6 x 2.6
|
White LED
|
Touchscreen, built in timing controller
|
|
3.5"
|
240 x 320
|
TX09D30VM1CCA
|
TFT
|
Transmissive
|
64 x 86 x 7.6
|
LED
|
TMR, Timing controller built in, On board voltage generation, 40KHr LED B/L, Touchscreen
|
|
3.5"
|
240 x 320
|
TX09D30VM1CDA
|
TFT
|
Transmissive
|
64 x 86 x 6.7
|
LED
|
TMR, Timing controller built in, On board voltage generation, 40KHr LED B/L
|
|
3.5"
|
240 x 320
|
TX09D40VM3CAA
|
TFT
|
Transmissive
|
64 x 86 x 4
|
LED
|
Touchscreen
|
|
3.5"
|
240 x 320
|
TX09D40VM3CBA
|
TFT
|
Transmissive
|
64 x 86 x 3.12
|
LED
|
|
|
3.5"
|
240 x 320
|
TX09D70VM1CBA
|
TFT
|
Transmissive
|
64 x 86 x 4
|
White LED
|
High brightness
|
|
3.5"
|
240 x 320
|
TX09D70VM1CCA
|
TFT
|
Transmissive
|
64 x 86 x 6.5
|
White LED
|
High brightness, built in timing controller, Touchscreen
|
|
3.5"
|
240 x 320
|
TX09D70VM1CDA
|
TFT
|
Transmissive
|
64 x 86 x 6.5
|
White LED
|
High brightness, built in Timing controller
|
|
3.5"
|
240 x 320
|
TX09D70VM1CEA
|
TFT
|
Transmissive
|
64 x 86 x 4
|
White LED
|
High brightness, Anti-glare, Touchscreen
|
|
3.5"
|
320 x 240
|
TX09D04VM3CAA
|
TFT
|
Transmissive
|
85.9 x 71.7 x 13.9
|
LED
|
Wide Temperature Range, Timing controller built in, On board voltage generation
|
|
3.8"
|
320 x 240
|
SP10Q010
|
Black/White Film STN
|
Transmissive
|
94.7 x 73.3 x 5.5
|
White LED
|
White LED, High brightness, WTR,
|
|
3.8"
|
320 x 240
|
SP10Q010-T
|
Black/White Film STN
|
Transflective
|
94.7 x 73.3 x 5.5
|
White LED
|
White LED, Sunlight readable, WTR
|
|
3.8"
|
320 x 240
|
SP10Q010-TZA
|
Black/White Film STN
|
Transflective
|
94.7 x 73.3 x 5.5
|
White LED
|
White LED, Sunlight readable, WTR, Touchscreen
|
|
3.8"
|
320 x 240
|
SP10Q010-ZZA
|
Black/White Film STN
|
Transmissive
|
94.7 x 73.3 x 5.5
|
White LED
|
White LED, High brightness, WTR, Touchscreen
|
|
4.3"
|
480 x 272
|
TX11D04VM2AAA
|
TFT
|
Transmissive
|
105.5 x 67.2 x 2.9
|
LED
|
Super slim design
|
|
4.3"
|
480 x 272
|
TX11D04VM2APA
|
TFT
|
Transmissive
|
105.5 x 67.2 x 4.0
|
LED
|
Super slim design, Touchscreen
|
|
4.7"
|
320 x 240
|
LMG7520RPFC
|
Black/White Film STN
|
Transmissive
|
129.6 x 92.6 x 7.5
|
CFL
|
|
|
4.7"
|
320 x 240
|
LMG7525RPFF
|
Black/White Film STN
|
Transflective
|
129.6 x 92.6 x 7.5
|
CFL
|
Sunlight readable
|
|
4.7"
|
320 x 240
|
SP12Q01L6ALZZ
|
Black/White Film STN
|
Transmissive
|
129.6 x 92.6 x 7.5
|
White LED
|
LMG7520RPFC compatible
|
|
4.7"
|
320 x 240
|
ST12Q01L6ALZZ
|
Black/White Film STN
|
Transflective
|
129.6 x 92.6 x 7.5
|
White LED
|
Sunlight readable, LMG7525RPFF compatible
|
|
4.8"
|
256 x 64
|
SP12N001-T
|
Blue/Grey STN
|
Transflective
|
160 x 68 x 9.5
|
EL
|
Sanyo LC7981, LMG6381QHGE replacement
|
|
4.8"
|
256 x 64
|
SP12N002
|
Black/White Film STN
|
Transmissive
|
160 x 68 x 12
|
CFL
|
Toshiba T6963C, LMG7380QHFC replacement
|
|
5.0"
|
640 x 480
|
TX13D03VM1CAA
|
TFT
|
Transmissive
|
119.4 x 89.1 x 8.8
|
70 Khr LED
|
VGA, Compact
|
|
5.0"
|
640 x 480
|
TX13D03VM1CPA
|
TFT
|
Transmissive
|
119.4 x 89.1 x 10.3
|
70 Khr LED
|
VGA, Compact, Touchscreen
|
|
5.1"
|
240 x 128
|
LMG7420PLFC-X
|
Black/White Film STN
|
Transmissive
|
159.4 x 101 x 11
|
CFL
|
Toshiba T6963C, 50K hour CFL
|
|
5.1"
|
240 x 128
|
SP14N001
|
Black/White Film STN
|
Transmissive
|
159.4 x 101 x 11
|
CFL
|
Toshiba T6963C, 50K hour CFL, DC/DC
|
|
5.1"
|
240 x 128
|
SP14N001-Z1
|
Black/White Film STN
|
Transmissive
|
159.4 x 101 x11
|
CFL
|
Toshiba T6963C, 50K hour CFL
|
|
5.1"
|
240 x 128
|
SP14N001-Z1A
|
Black/White Film STN
|
Transmissive
|
159.4 x 101 x11
|
CFL
|
Toshiba T6963C, 50K hour CFL, touchscreen
|
|
5.1"
|
240 x 128
|
SP14N001-ZZA
|
Black/White Film STN
|
Transmissive
|
159.4 x 101 x 11
|
CFL
|
Toshiba T6963C, 50K hour CFL, DC/DC, touchscreen
|
|
5.1"
|
240 x 128
|
SP14N002
|
Black/White Film STN
|
Transmissive
|
159.4 x 101 x 11
|
CFL
|
Sanyo LC7981, LMG7400PLFC replacement
|
|
5.1"
|
240 x 128
|
SP14N003
|
Blue/White STN
|
Transmissive
|
159.4 x 101 x 11
|
CFL
|
Sanyo LC7981, LMG7401PLBC replacement
|
|
5.1"
|
240 x 128
|
SP14N01L6ALCA
|
Black/White Film STN
|
Transmissive
|
159.4 x 101 x 11
|
White LED
|
Toshiba T6963C LMG7420PLFC-X compatible, Touchscreen
|
|
5.1"
|
240 x 128
|
SP14N01L6ALCZ
|
Black/White Film STN
|
Transmissive
|
159.4 x 101 x 11
|
White LED
|
Toshiba T6963C, LMG7420PLFC-X compatible
|
|
5.1"
|
240 x 128
|
SP14N01L6VLCA
|
Black/White Film STN
|
Transmissive
|
159.4 x 101 x 11
|
White LED
|
Toshiba T6963, DC/DC, Touchscreen
|
|
5.1"
|
240 x 128
|
SP14N01L6VLCZ
|
Black/White Film STN
|
Transmissive
|
159.4 x 101 x 11
|
White LED
|
Toshiba T6963, DC/DC
|
|
5.7"
|
320 x 240
|
SP14Q002-A1
|
Black/White Film STN
|
Transmissive
|
167 x 109 x 10
|
CFL
|
|
|
5.7"
|
320 x 240
|
SP14Q002-C1
|
Black/White Film STN
|
Transmissive
|
167 x 109 x 10
|
CFL
|
50K hour CFL, WTR
|
|
5.7"
|
320 x 240
|
SP14Q002-C1A
|
Black/White Film STN
|
Transmissive
|
167 x 109 x 10
|
CFL
|
50K hour CFL, WTR, Touchscreen
|
|
5.7"
|
320 x 240
|
SP14Q002-C2A
|
Black/White Film STN
|
Transmissive
|
167 x 109 x 10
|
CFL
|
Touchscreen
|
|
5.7"
|
320 x 240
|
SP14Q003-A
|
Blue/White STN
|
Transmissive
|
167 x 109 x 10
|
White LED
|
WTR
|
|
5.7"
|
320 x 240
|
SP14Q003-AZA
|
Blue/White STN
|
Transmissive
|
167 x 109 x 11.4
|
White LED
|
WTR, Touchscreen
|
|
5.7"
|
320 x 240
|
SP14Q003-C1
|
Blue/White STN
|
Transmissive
|
167 x 109 x 10
|
CFL
|
50K hour CFL, Blue mode, WTR
|
|
5.7"
|
320 x 240
|
SP14Q003-C1A
|
Blue/White STN
|
Transmissive
|
167 x 109 x 10
|
CFL
|
50K hour CFL, Blue mode, WTR, Touchscreen
|
|
5.7"
|
320 x 240
|
SP14Q005
|
Black/White Film STN
|
Transmissive
|
167 x 109 x 10
|
CFL
|
50K hour CFL, High brightness, WTR
|
|
5.7"
|
320 x 240
|
SP14Q005-ZZA
|
Black/White Film STN
|
Transmissive
|
167 x 109 x 10
|
CFL
|
50K hour CFL, High brightness, WTR, Touchscreen
|
|
5.7"
|
320 x 240
|
SP14Q006
|
Black/White Film STN
|
Transmissive
|
167 x 109 x 10
|
White LED
|
White LED, High brightness, WTR
|
|
5.7"
|
320 x 240
|
SP14Q006-T
|
Black/White Film STN
|
Transflective
|
167 x 109 x 10
|
White LED
|
White LED, Sunlight readable, WTR
|
|
5.7"
|
320 x 240
|
SP14Q006-TZA
|
Black/White Film STN
|
Transflective
|
167 x 109 x 10
|
White LED
|
White LED, Sunlight readable, WTR,Touchscreen
|
|
5.7"
|
320 x 240
|
SP14Q006-ZZA
|
Black/White Film STN
|
Transmissive
|
167 x 109 x 10
|
White LED
|
White LED, High brightness, WTR, Touchscreen
|
|
5.7"
|
320 x 240
|
SP14Q011-A1
|
STN
|
Transmissive
|
131 x 102.2 x 10.9
|
White LED
|
Outline compatible to TX14D12 & TX14D14, 40K hour LED, WTR, DC/DC
|
|
5.7"
|
320 x 240
|
SP14Q011-A1A
|
STN
|
Transmissive
|
131 x 102.2 x 12.4
|
White LED
|
Outline compatible to TX14D12 & TX14D14, 40K hour LED, WTR, DC/DC , Touchscreen
|
|
5.7"
|
320 x 240
|
SP14Q011-T
|
STN
|
Transflective
|
131 x 102.2 x 10.9
|
White LED
|
Outline compatible to TX14D12 & TX14D14, 40K hour LED, WTR, DC/DC
|
|
5.7"
|
320 x 240
|
SP14Q011-T1A
|
STN
|
Transflective
|
131 x 102.2 12.4
|
White LED
|
Outline compatible to TX14D12 & TX14D14, 40K hour LED, WTR, DC/DC, Touchscreen
|
|
5.7"
|
320 x 240
|
SX14Q004
|
Colour STN
|
Transmissive
|
167 x 109 x 10
|
CFL
|
Wide viewing angle, DC/DC, 50K hour CFL
|
|
5.7"
|
320 x 240
|
SX14Q004-ZZA
|
Colour STN
|
Transmissive
|
167 x 109 x 10
|
CFL
|
Wide viewing angle, DC/DC, 50K hour CFL, Touchscreen
|
|
5.7"
|
320 x 240
|
SX14Q009
|
Colour STN
|
Transmissive
|
167 x 109 x 10
|
White LED
|
Wide viewing angle
|
|
5.7"
|
320 x 240
|
SX14Q009-ZZA
|
Colour STN
|
Transmissive
|
167 x 109 x 10
|
White LED
|
Wide viewing angle, Touchscreen
|
|
5.7"
|
320 x 240
|
TX14D11VM1CAA
|
TFT
|
Transmissive
|
167 x 109 x 10
|
CFL
|
50K hour CFL, DC/DC, SP/SX14Q compatible, Touchscreen
|
|
5.7"
|
320 x 240
|
TX14D11VM1CAB
|
TFT
|
Transmissive
|
167 x 109 x 11
|
1 x CCFL
|
High brightness, Touchscreen
|
|
5.7"
|
320 x 240
|
TX14D11VM1CBA
|
TFT
|
Transmissive
|
167 x 109 x 10
|
CFL
|
50K hour CFL, DC/DC, SP/SX14Q compatible
|
|
5.7"
|
320 x 240
|
TX14D11VM1CBB
|
TFT
|
Transmissive
|
167 x 109 x 9.2
|
1 x CCFL
|
High brightness
|
|
5.7"
|
320 x 240
|
TX14D11VM1CBD
|
TFT
|
Transmissive
|
167 x 109 x 9.2
|
LED
|
40Khr LED
|
|
5.7"
|
320 x 240
|
TX14D11VM1CPD
|
TFT
|
Transimissve
|
167 x 109 x 10.4
|
LED
|
40Khr LED, Touchscreen
|
|
5.7"
|
320 x 240
|
TX14D12VM1CAA
|
TFT
|
Transmissive
|
131 x 102 x 10
|
CFL
|
Compact, Touchscreen
|
|
5.7"
|
320 x 240
|
TX14D12VM1CAB
|
TFT
|
Transmissive
|
131 x 102.2 x 12.4
|
1 x CCFL
|
High brightness, Touchscreen
|
|
5.7"
|
320 x 240
|
TX14D12VM1CBA
|
TFT
|
Transmissive
|
131 x 102 x 10
|
CFL
|
Compact
|
|
5.7"
|
320 x 240
|
TX14D12VM1CBB
|
TFT
|
Transmissive
|
131 x 102 x 10
|
CFL
|
Compact, Super high brightness
|
|
5.7"
|
320 x 240
|
TX14D12VM1CBC
|
TFT
|
Transmissive
|
131 x 102 x 10.9
|
LED
|
Compact, LED B/L
|
|
5.7"
|
320 x 240
|
TX14D12VM1CPC
|
TFT
|
Transmissive
|
131 x 102.2 x 12.4
|
LED
|
Compact, LED B/L, Touchscreen
|
|
5.7"
|
320 x 240
|
TX14D16VM1CBC
|
TFT
|
Transmissive
|
131 x 102.2 x 10.9
|
LED
|
Compact, LED B/L
|
|
5.7"
|
320 x 240
|
TX14D16VM1CPC
|
TFT
|
Transmissive
|
131 x 102.2 x 12.4
|
LED
|
Compact, LED B/L, Touchscreen
|
|
5.7"
|
320 x 240
|
TX14D22VM1BAA
|
TFT
|
Transmissive
|
131.0 x 102.2 x 7.1
|
LED
|
Super slim design
|
|
5.7"
|
320 x 240
|
TX14D22VM1BPA
|
TFT
|
Transmissive
|
131 x 102.2 x 8.6
|
LED
|
Super slim design, Touchscreen
|
|
5.7"
|
640 x 480
|
TX14D10VM1BAA
|
TFT
|
Transmissive
|
131 x 102.2 x 11.6
|
LED
|
Compact, VGA, LVDS interface
|
|
5.7"
|
640 x 480
|
TX14D10VM1BPA
|
TFT
|
Transmissive
|
131 x 102.2 x 13.1
|
LED
|
Compact, VGA, Touchscreen, LVDS interface
|
|
5.7"
|
640 x 480
|
TX14D14VM1BAA
|
TFT
|
Transmissive
|
131 x 102.2 x 11.6
|
1 x CCFL
|
Compact, VGA
|
|
5.7"
|
640 x 480
|
TX14D14VM1BAB
|
TFT
|
Transmissive
|
131 x 102.2 x 11.6
|
LED
|
Compact, VGA
|
|
5.7"
|
640 x 480
|
TX14D14VM1BBA
|
TFT
|
Transmissive
|
131 x 102.2 x 13.1
|
1 x CCFL
|
Compact, VGA, Touchscreen
|
|
5.7"
|
640 x 480
|
TX14D14VM1BPB
|
TFT
|
Transmissive
|
131 x 102.2 x 13.1
|
LED
|
Compact, VGA, Touchscreen
|
|
5.7"
|
640 x 480
|
TX14D17VM1BAB
|
TFT
|
Transmissive
|
131 x 102.2 x 10.9
|
LED
|
Compact, LED B/L
|
|
5.7"
|
640 x 480
|
TX14D17VM1BPB
|
TFT
|
Transmissive
|
131 x 102.2 x 13.1
|
LED
|
Compact, LED B/L, Touchscreen
|
|
5.8"
|
400 x 240
|
TX15D02VM0CAA
|
IPS TFT
|
Transmissive
|
145 x 89 x 12.5
|
LED
|
IPS-Pro
|
|
6.2"
|
640 x 240
|
TX16D11VM2CAA
|
TFT
|
Transmissive
|
173 x 70 x 7
|
CFL
|
High Brightness, DC/DC, SX16 compatible, Touchscreen
|
|
6.2"
|
640 x 240
|
TX16D11VM2CAC
|
TFT
|
Transmissive
|
173 x 70 x 7
|
40KHr LED
|
High brightness, DC/DC
|
|
6.2"
|
640 x 240
|
TX16D11VM2CBA
|
TFT
|
Transmissive
|
173 x 70 x 7
|
CFL
|
High Brightness, DC/DC, SX16 compatible
|
|
6.2"
|
640 x 240
|
TX16D11VM2CQC
|
TFT
|
Transmissive
|
173 x 70 x 8.6
|
40Khr LED
|
DC/DC, LED B/L,Touchscreen
|
|
6.2"
|
800 x 300
|
TX16D18VM2CAB
|
TFT
|
Transmissive
|
173 x 70 x 7
|
40KHr LED
|
High brightness, DC/DC, Fine Dot Pitch
|
|
6.2"
|
800 x 300
|
TX16D18VM2CQB
|
TFT
|
Transmissive
|
173 x 70 x 8.6
|
40Khr LED
|
DC/DC, Fine Dot Pitch, LED B/L,Touchscreen
|
|
6.5"
|
640 x 480
|
TX17D01VM2CAA
|
TFT
|
Transmissive
|
153 x 118 x 9.1
|
70Khr LED
|
Compact, VGA
|
|
6.5"
|
640 x 480
|
TX17D01VM2CPA
|
TFT
|
Transmissive
|
153 x 118 x 10.2
|
70Khr LED
|
Compact, VGA, Touchscreen
|
|
6.5"
|
640 x 480
|
TX17D01VM2CPB
|
TFT
|
Transmissive
|
153 x 118 x 10.2
|
70Khr LED
|
High brightness, Compact, VGA, Touchscreen
|
|
6.5"
|
640 x 480
|
TX17D01VM2EAB
|
TFT
|
Transmissive
|
153 x 118 x 9.1
|
70Khr LED
|
High brightness, Compact, VGA
|
|
6.5"
|
640 x 480
|
TX17D02VM2CAA
|
TFT
|
Transmissive
|
153 x 118 x 9.1
|
70Khr LED
|
Compact, VGA, LVDS interface
|
|
7.0"
|
800 x 480
|
TX18D16VM1CAA
|
TFT
|
Transmissive
|
165 x 106 x 10.5
|
CFL
|
High brightness, Wide viewing angle
|
|
7.0"
|
800 x 480
|
TX18D16VM1CAB
|
TFT
|
Transmissive
|
165 x 106 x 10.5
|
CFL
|
Wide viewing angle, super high brightness
|
|
7.0"
|
800 x 480
|
TX18D16VM1CBA
|
TFT
|
Transmissive
|
165 x 106 x 10.5
|
CFL
|
High brightness, Wide viewing angle, Touchscreen
|
|
7.0"
|
800 x 480
|
TX18D16VM1CBB
|
TFT
|
Transmissive
|
165 x 106 x 12.3
|
1 x CCFL
|
High brightness, Touchscreen
|
|
7.0"
|
800 x 480
|
TX18D35VM0AAA
|
IPS TFT
|
Transmissive
|
165 x 104 x 12.8
|
LED
|
IPS-Pro
|
|
7.0"
|
800 x 480
|
TX18D35VM0APA
|
IPS TFT
|
Transmissive
|
166.1 x 107.82 x 14.4
|
LED
|
IPS-Pro, Touchscreen
|
|
7.0"
|
800 x 480
|
TX18D37VM0AAA
|
IPS TFT
|
Transmissive
|
165 x 104 x 12.8
|
LED
|
IPS-Pro, LVDS interface
|
|
7.0"
|
800 x 480
|
TX18D37VM0APA
|
IPS TFT
|
Transmissive
|
166.1 x 107.82 x 14.4
|
LED
|
IPS-Pro, LVDS interface, Touchscreen
|
|
7.0"
|
800 x 480
|
TX18D57VM2BAA
|
TFT
|
Transmissive
|
167.8 x 108.6 x 15.6
|
1 x CCFL
|
WideTemperature Range
|
|
8.0"
|
800 x 480
|
TX20D16VM2BAA
|
TFT
|
Transmissive
|
189 x 120 x 10.5
|
CFL
|
High brightness, Wide viewing angle
|
|
8.0"
|
800 x 480
|
TX20D16VM2BBA
|
TFT
|
Transmissive
|
189 x 120 x 10.5
|
CFL
|
Wide viewing angle, Touchscreen
|
|
8.0"
|
800 x 480
|
TX20D17VM2BAA
|
TFT
|
Transmissive
|
189 x 120 x 10.5
|
CCFL
|
Super high brightness
|
|
8.0"
|
800 x 480
|
TX20D17VM2BBA
|
TFT
|
Transmissive
|
189 x 120 x 10.5
|
CCFL
|
Super high brightness, Touchscreen
|
|
8.0"
|
800 x 480
|
TX20D19VM2BAA
|
TFT
|
Transmissive
|
189 x 120 x 7.5
|
LED
|
Compact, High brightness
|
|
8.0"
|
800 x 480
|
TX20D19VM2BPA
|
TFT
|
Transmissive
|
189 x 120 x 9
|
LED
|
Compact, High Brightness, Touchscreen
|
|
8.0"
|
800 x 480
|
TX20D26VM0AAA
|
IPS TFT
|
Transmissive
|
190 x 120 x 12.8
|
LED
|
IPS-Pro, Wide Viewing Angle, Wide Temperature Range
|
|
8.0"
|
800 x 480
|
TX20D26VM0APA
|
IPS TFT
|
Transmissive
|
190 x 120 x 14.3
|
LED
|
IPS-Pro, Wide Viewing Angle, Wide Temperature Range, Touchscreen
|
|
8.0"
|
800 x 480
|
TX20D28VM2BAA
|
TFT
|
Transmissive
|
189 x 120 x 7.5
|
LED
|
Compact, High brightness, LVDS interface
|
|
8.0"
|
800 x 480
|
TX20D28VM2BPA
|
TFT
|
Transmissive
|
189 x 120 x 7.5
|
LED
|
Compact, High brightness, LVDS interface, Touchscreen
|
|
9.0"
|
800 x 480
|
TX23D12VM0CAA
|
IPS TFT
|
Transmissive
|
236 x 135 x 12.5
|
1 x CCFL
|
Wide viewing angle
|
|
9.0"
|
800 x 480
|
TX23D12VM0CBA
|
IPS TFT
|
Transmissive
|
236 x 135 x 14
|
1 x CCFL
|
Wide viewing angle, Touchscreen
|
|
9.0"
|
800 x 480
|
TX23D38VM0CAA
|
IPS TFT
|
Transmissive
|
218 x 135 x 11.15
|
70Khr LED
|
IPS-Pro, Wide Viewing Angle, LVDS interface, On-board LED controller, DC/DC
|
|
9.0"
|
800 x 480
|
TX23D38VM0CPA
|
IPS TFT
|
Transmissive
|
218 x 135 x 12.65
|
70Khr LED
|
IPS-Pro, Wide Viewing Angle, LVDS interface, On-board LED controller, DC/DC, Touchscreen
|
|
9.0"
|
800 x 480
|
TX23D55VM2BAA
|
TFT
|
Transmissive
|
216.5 x 135 x 14.5
|
1 x CCFL
|
High Brightness, Wide Temperature Range
|
|
9.0"
|
800 x 480
|
TX23D55VM2BPA
|
TFT
|
Transmissive
|
216.5 x 135 x 16
|
1 x CCFL
|
High Brightness, Wide Temperature Range, Touchscreen
|
|
9.4"
|
640 x 480
|
SP24V001
|
Black/White Film STN
|
Transmissive
|
257.5 x 174 x 7
|
CFL
|
50K hour CFL, LMG5278XUFC compatible
|
|
9.4"
|
640 x 480
|
SP24V001-A
|
Black/White Film STN
|
Transmissive
|
257.5 x 174 x 7
|
CFL
|
50K hour CFL, Sharp LM64P83L compatible
|
|
10.2"
|
800 x 256
|
TX26D89VM2BAA
|
TFT
|
Transmissive
|
260.2 x 96.2 x 10.55
|
CCFL
|
High contrast
|
|
10.4"
|
640 x 480
|
LMG7550XUFC
|
Black/White Film STN
|
Transmissive
|
264 x 183 x 9
|
CFL
|
|
|
10.4"
|
640 x 480
|
TX26D14VM2EAA
|
TFT
|
Transmissive
|
243 x 185.1 x 11
|
LED
|
Ultra high brightness, WTR
|
|
10.4"
|
640 x 480
|
TX26D55VM1CAA
|
TFT
|
Transmissive
|
243 x 181.6 x 12.5
|
2 x CFL
|
High brightness
|
|
10.4"
|
800 x 600
|
TX26D12VM0AAA
|
IPS TFT
|
Transmissive
|
243 x 185.1 x 11
|
LED
|
IPS-Pro, Wide Viewing Angle, Wide Temperature Range
|
|
10.4"
|
800 x 600
|
TX26D12VM0APA
|
IPS TFT
|
Transmissive
|
243 x 185.1 x 13
|
LED
|
IPS-Pro, Wide Viewing Angle, Wide Temperature Range, Touchscreen
|
|
12"
|
800 x 480
|
TX31D55VM2BAA
|
TFT
|
Transmissive
|
283 x 173.8 x 12.4
|
1 x CCFL
|
|
|
12"
|
800 x 480
|
TX31D55VM2BPA
|
TFT
|
Transmissive
|
283 x 173.8 x 15
|
1 x CCFL
|
Touchscreen
|
|
12"
|
800 x 480
|
TX31D58VM0CAA
|
IPS TFT
|
Transmissive
|
312.35 x 185.8 x 13
|
2 x CCFL
|
IPS-Pro, Wide Viewing Angle, Wide Temperature Range, 16M Colours
|
|
12.1"
|
800 x 600
|
TX31D36VM2EAA
|
TFT
|
Transmissive
|
280 x 210 x 11
|
LED
|
Ultra high bright, WTR
|
|
12.1"
|
800 x 600
|
TX31D56VM2AAA
|
TFT
|
Transmissive
|
280 x 210 x 13
|
2 X CCFL
|
|
|
15"
|
1024x768
|
TX38D55VM1AAA
|
TFT
|
Transmissive
|
330 x 260 x 17
|
4 x CCFL
|
|
|
15.4"
|
1280x800
|
TX39D55VM1BAA
|
TFT
|
Transmissive
|
356.8 x 238 x 15
|
4 x CCFL
|
|
|
16.5"
|
1920x1080
|
TX42D14VC0CAA
|
IPS TFT
|
Transmissive
|
400 x 243 x 55
|
CCFL
|
Full-HD, IPS-Pro, High Contrast, 10-bit RGB, 120Hz
|
|
17.0"
|
1280x1024
|
TX43D57VC0CAA
|
IPS TFT
|
Transmissive
|
368 x 306 x 20.3
|
CCFL
|
IPS-Pro, Wide Viewing Angle
|
|
17.0"
|
1280x768
|
TX43D55VM0BAA
|
IPS TFT
|
Transmissive
|
400 x 258 x 22
|
CCFL
|
IPS-Pro, Wide Viewing Angle, Wide Temperature Range
|
|
19.0"
|
1680X1050
|
TX48D21VM0CAA
|
IPS TFT
|
Transmissive
|
444 x 300 x 24
|
CCFL
|
IPS-Pro, High Contrast
|
|
21.2"
|
2048x1536
|
TX54D71VC0CAA
|
IPS TFT
|
Transmissive
|
460.6 x 359 x 43.4
|
CCFL
|
IPS-Pro, High Brightness, High Contrast, 10-bit RGB
|
|
21.3"
|
1600x1200
|
TX54D13VC0CAA
|
IPS TFT
|
Transmissive
|
460.6 x 362 x 25
|
CCFL
|
IPS-Pro, Wide Viewing Angle, Wide Temperature Range
|
|
21.3"
|
1600x1200
|
TX54D32VC0CAA
|
IPS TFT
|
Transmissive
|
460.6 x 362 x 43.4
|
CCFL
|
IPS-Pro, High Brightness, High Contrast
|
|
|
|
Hitachi LCD Vietnam
GNN VIETNAM
Headquarter Office: 153 Nguyen Van Thu, Đakao Ward, Dist.1, HCMC.
Transaction Office: 33 Hoa Hong, Ward 2, Phu Nhuan District, HCMC.
Tel : (084.8) 3 517 4923 I Fax: (084.8) 3 517 4924
Số người xem :
3926
Các bài viết khác
|
|
|
