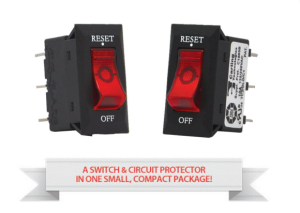

The C1005B-Series offers the functionality of a switch and circuit breaker in a single compact package, which fts an industry standard. 500 x 1.125 mounting hole. This combo device eliminates the need for both a switch and thermal circuit protector on customer panels. By using only this multipurpose product, wiring and assembly costs are greatly reduced, while at the same time, valuable panel real estate is saved. The C1005B-Series is available lighted or unlighted, in a variety of colors, with solder lug or .250 Tabs. Current ratings range from 7-16 amps@125 and 250 VAC and up to 32 VDC.
Product Applications:
- Household and Commercial Appliances
- Transportation
- Marine
- Telecommunications
- Power Strips
- Audio-visual Equipment
- Medical equipment
- Power supplies
- Generators
Safety Regulatory Agency Approvals:
Product Highlights:
- Industry Standard .550 X 1.125 mounting hole (14mm X 28.6mm)
- Ratings from 7-16 Amps
- Standard Reset/Off Legend
- Aesthetically pleasing Curved Rocker & Angular Bezel
- .250 Tabs or Solder Lug Terminations
- 65°C Max Operating Temperature
- 1000 AIC Interrupting Capacity
- 1500 VAC Dielectric Strength
- 100 megohms at 500 VDC Insulation Resistance
- Compact Space-saving Envelope>
- UL1077, UL1363, IEC 60934
