Tên Sản phẩm :
CPE18-M1H-5L-1/4 Festo Solenoid valve
|
|
Mã Sản phẩm :
CPE18-M1H-5L-1/4
|
|
Chuyên mục :
Van Điện Từ / Solenoid Valves
|
|
Nhà sản xuất :
Festo
|
|
|
|
Hàng sẵn kho :
Đặt hàng
|
|
Nhà cung cấp :
Gnn Vietnam
|
Tóm tắt
:
Connection M5, M7, G 1/8, G 1/4, G 3/8
Push-in connector 4, 6, 8, 10, 12 mm
Flow 180 ... 3 200 l/min
Voltage 24 V DC, 110, 230 V AC
In-line valves
- Electrically actuated, piloted, pneumatic spring return
Manifold rail.

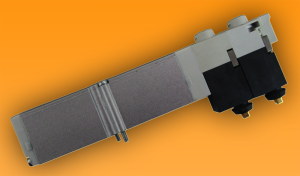

Hình ảnh :
Thông số chi tiết :
Specifications
| Property |
Value |
| Valve Type |
In-line valve |
| Size |
18 mm |
| Short type code |
CPE18 |
| Design structure |
Piston slide |
| Ambient temp |
-5 - 50 °C |
| Mounting |
with through hole |
| Assembly position |
Any |
| Operating Pressure |
2.5 - 10 bar |
| Medium temperature |
-5 - 50 °C |
| Product weight |
220 g |
| Operating medium |
filtered compressed air, grade of filtration 40 µm, lubricated or unlubricated |
| Symbol |
00991023 |
| Valve Function |
5/2-way valve, single solenoid |
| Valve Function |
5/2 monostable |
| Sealing principle |
soft |
| Type of piloting |
Piloted |
| Type of reset |
Air spring |
| Pilot air supply |
Internal |
| Nominal size |
8 mm |
| Pneumatic connection, port 3 |
G1/4 |
| Electrical Connect |
Connection pattern type C, to EN 175 301 |
| Electrical Connect |
Design C |
| Manual override |
with accessories, detenting |
| Manual override |
Pushing |
| Authorisation |
Germanischer Lloyd |
| Authorisation |
c UL us - Recognized |
| Switching time on |
26 ms |
| Switching time off |
20 ms |
| Protection class |
IP65 |
| Protection class |
with plug socket |
| Protection class |
to IEC 60529 |
| Corrosion resistance classification CRC |
2 |
| Duty cycle |
100% |
| Pneumatic connection, port 4 |
G1/4 |
| Pneumatic connection, port 5 |
G1/4 |
| Pilot air port 12 |
M5 |
| Pilot air port 14 |
M5 |
| Pilot exhaust port 82 |
M5 |
| Pilot exhaust port 84 |
M5 |
| Materials note |
Conforms to RoHS |
| Characteristic coil data |
24V DC: 1,5W |
| Permissible voltage fluctuation |
-15 % / +10 % |
| Valve position identification |
Inscription label holder |
| Width |
18 mm |
| Materials information, housing |
Aluminium die cast |
| Materials information for seals |
NBR |
| Operating voltage |
24V DC |
| Pneumatic working line |
G1/4 |
| Product Type |
Festo Valves CPE |
| Exhaust-air function |
throttleable |
| Pneumatic connection |
Female thread G1/4 |
| Pneumatic connection, port 1 |
G1/4 |
| Pneumatic connection, port 2 |
G1/4 |
| Standard nominal flow rate |
1300 l/min |
| Type of actuation |
electrical |
| Nominal operating voltage |
24 VDC |
|
