Tên Sản phẩm :

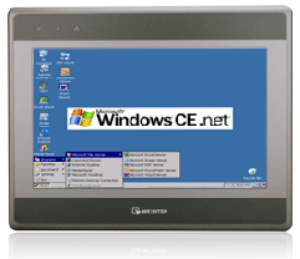

Display MT610i
|
|
Mã Sản phẩm :
MT610i
|
|
Chuyên mục :
Hiển Thị (Display, Indicator)
|
|
Nhà sản xuất :
Weintek
|
|
|
|
Hàng sẵn kho :
Đặt hàng
|
|
Nhà cung cấp :
GNN
|
Tóm tắt
:
MT610i is a miniature and compact platform that has no redundant functions. Its RISC kernel, the ARM11 high performance micro-processor, that supports Windows CE. The ARM926EJ core, the integration of a 2D Graphics Accelerator, an added low power mode. The MT610i is equipped with a USB 1.1 host, a USB 2.0 high speed device and SD card slot.
Hình ảnh :
Thông số chi tiết :
| Specification |
|
| Display |
| Display: |
10" TFT Widescreen |
| Brightness (cd/m2): |
350 cd/m2 |
| Contrast Ratio: |
300:1 |
| Color: |
65536 colors |
| Resolution (WXH): |
800x480 |
| Back Light: |
LED |
| Back Light Life Time: |
30,000 hr |
|
| Processor: |
32bit RISC CPU 400 MHz |
| Enclosure: |
Plastic |
| Touch Panel |
| Touch Panel Type: |
4 wires resistive type |
| Touch Accuracy |
Active Area Length(X)±2%, Width(Y)±2% |
|
| Memory |
| Storage: |
128 MB Flash |
| RAM (RAM): |
64 MB |
|
| I/O ports |
| SD Card Slot: |
Yes |
| USB Host: |
USB 1.1 x 1 |
| USB Client: |
USB 2.0 x 1 |
| Ethernet Port: |
10/100 Base-T |
| COMPort: |
COM1(RS232 / RS485 2W/4W),COM2(RS232) COM3(RS232/RS485 2W) |
| Audio: |
YES |
|
| Power |
| Input Power: |
24 ±20% VDC |
| Power Consumption: |
350mA@24VDC |
|
| RTC: |
Yes |
| Specification |
| Panel Cutout (WXH): |
259x201mm |
| Weight (KG): |
Approx 1.6kg |
|
| Operation |
| CE: |
Compilies with EN 55022:2006,Class A , EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005 standards |
| FCC: |
|
| UL: |
E248297 |
| Voltage Resistance: |
500 VAC (1 min) |
| Isolation Resistance: |
Exceed 50MΩ at 500 VDC |
| Vibration Endurance: |
10 to 25 Hz (X,Y,Z direction 2G 30minutes) |
| Protection Structure: |
IP65 front panel (O ring seal) |
| Storage Temperature: |
-20°~60°C (-4°~140°F) |
| Operating Temperature: |
0°~50°C (32°~122°F) |
| Operation Humidity: |
10-90%@40°C RH (non-condensing) |
|
|
