Pressure by regulators to set up an electrical signal.
- Precision Control
- 1.5% FS linearity, precision control is possible that pressure hysteresis 1.0% FS.
- Excellent pressure characteristics
- Output voltage variation for the primary pressure change is less than 0.5% FS.
- Flow characteristic
- As with the normal pressure reducing valve, ensuring a ready flow directly to the pneumatic equipment. In addition, reproducibility for intermittent load is less than 0.5% FS.
- Free mounting orientation
- There are no restrictions on mounting orientation. However, after installation is required zero and span adjustments.
- Wide adjustment range
- The span adjustment screw, RT · E/P-8-2 is 0.65 ~ 0.84MPa, RT · I/P-8-2 can change its point of each span in the range of 0.24 ~ 0.84MPa.
- Compact
- Compact main dimensions of 54 × 105. Takes up space.
| RT · E/P-8-2 |

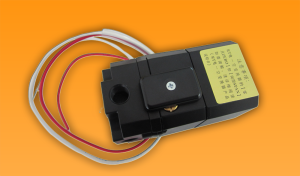

RT · I/P-8-2 |
RT · I/P-1-2 |
| Fluid |
Compressed air cleaning |
| Pressure range (MPa) |
0.02 to 0.82 |
0.02 to 0.1 |
| Outlet pressure range of 1 (MPa) |
1.MAX,
Above the set pressure +0.035 |
0.7.MAX,
Above the set pressure +0.02 |
| Input signal |
Control scheme |
Voltage 2-wire |
Current 2-wire |
| Voltage (VDC) |
0-10 |
- |
| Input Impedance (Ω) |
805 |
- |
| Current (mADC) |
- |
4-20 |
| Input Impedance (Ω) |
- |
260 |
180 |
| Linearity (%. FS) |
1.5 |
| Hysteresis (%. FS) |
1.0 |
| Repeatability (%. FS) |
± 0.1 |
± 0.5 |
| Step response (sec) |
1.0 |
0.2 |
| Lower limit span adjustment (MPa) |
0.65 |
0.24 |
0.08 |
| Sensitivity Relief (MPa) |
Below the set pressure + 0.001 |
| Air consumption (Nl / min) |
Below 3.7 |
Below 4.8 |
| Operating Temperature Range (℃) |
5-60 |
| Port size (Rc) |
1 / 4 |
| Pressure gauge port size (Rc) |
1 / 4 |
| Bracket |
Standard equipment |
| Weight (kg) |
0.94 |
